GU-3900B series “General Function” Software Specification
MD3 (Horizontal scroll mode)
Cursor position
Figure
Number
Display Operation
X direction
Y direction
Space for
character on
right side.
Not right end.
-
①
Display character at cursor.
Horizontal Tab (HT) (OP2).
Right end (refer
to Figure 2).
-
Display character at cursor.
Shift to Scroll ON*.
-
No space for character at
current cursor position.
②
No action.
Cursor does not move.
No space for
character on
right side.
-
-
③
Contents of current line scroll left until
sufficient space for character is
available at the right end (OP3).
Cursor moves to the left edge of newly-
created space (OP1).
Display character at cursor.
Shift to Scroll ON*.
-
No space for character at
current cursor position.
④
No action.
Cursor does not move.
* Note: Operation during “Scroll ON”:
Contents of current line scroll left until sufficient space for character is available at the right end, then
character is displayed at cursor.
“Scroll ON” condition is cancelled by any command that moves the cursor except Character Display
or Horizontal Tab.
- 14
-
A

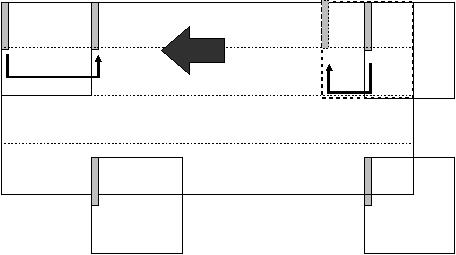

Figure 2
③
OP1
④
OP3
①
OP2
②
Cursor
Space (Blank)
Space (for 1 character)
